UJK PARF MKII Kit for Drilling 20mm Holes in Workbenches

Manufacturer:UJK
Availability:in stock 1 item(s)
Product Code:104779

Product Dimensions and Weight

Product Weight: 2.7000KG
1249,00 zł
1199,00 zł
gross
Najniższa cena z 30 dni przed obniżką: 1249,00 zł

Parf Guide System MK II UJK - A Complete and Enhanced Kit for Drilling Precise Holes in Workbenches Without CNC

Create your own multifunctional table (MFT) or portable perforated work surface in any size in just a few minutes.

The PARF MKII ensures perfect and repeatable cutting/milling every time. It allows for designing a grid on the workbench and drilling perfectly vertical holes in the tops. Using precisely drilled 20mm holes with the PSG, you only need 3 clamps and any guide to make quick and simple cuts without repositioning the material.

How Does It Work?

USER MANUAL - CLICK HERE

The PSG set is based on the ancient Pythagorean theorem (a²+b²=c²).

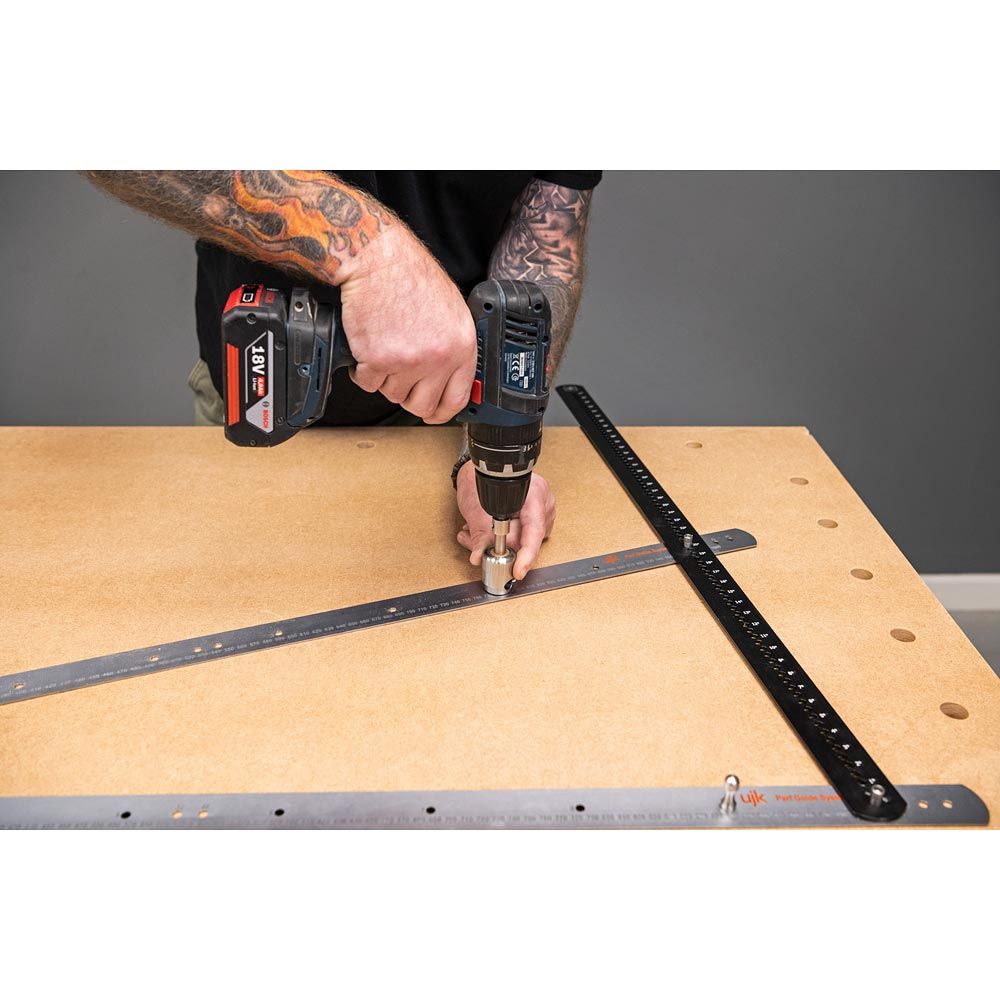

In the first stage, we use two rails to create guiding 3mm holes. Using the drill and bushings from the kit, we drill holes. Thanks to the centering pins, we can secure the rails in the created holes and create more until we have a full grid of drillings. In the next stage, we enlarge the 3mm holes to 20mm using a special template with guide bushings for the drill.

The components of the kit are manufactured in the United Kingdom using CNC machining to ensure the highest level of accuracy.

Kit Contents:

2 rails (1m long with precisely drilled 3mm holes every 96mm)
Template for creating 20mm holes
2 low clamps
2 metal bushings for 3mm drill
3 centering pins
Special wood drill bit 20mm
Drill bit 3mm
Dust extraction port for dust removal during drilling.

Country of Manufacture: United Kingdom






















Product Presentation:

https://youtu.be/ImlLNgxuVR4

https://youtu.be/Bfxxjn85SRE
