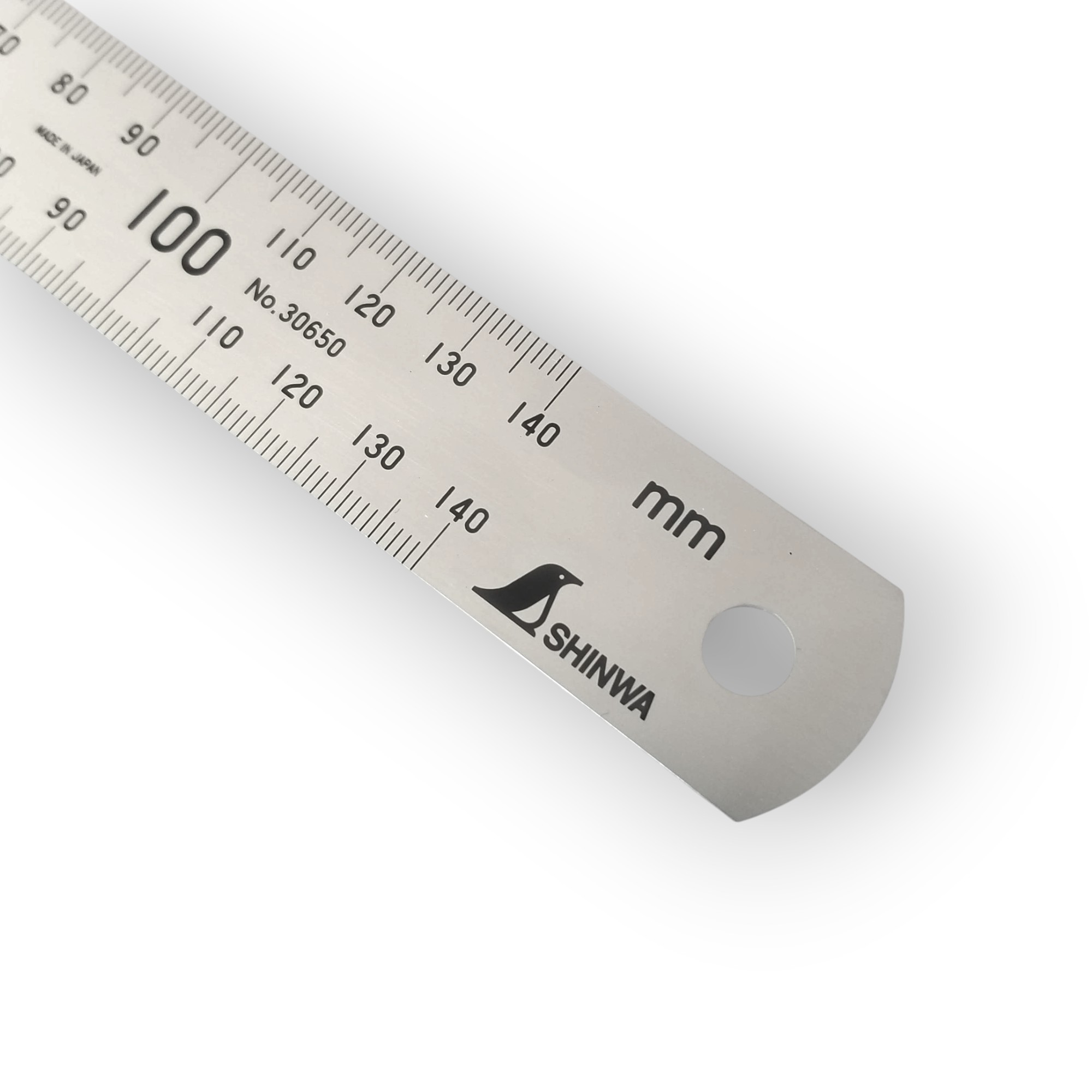

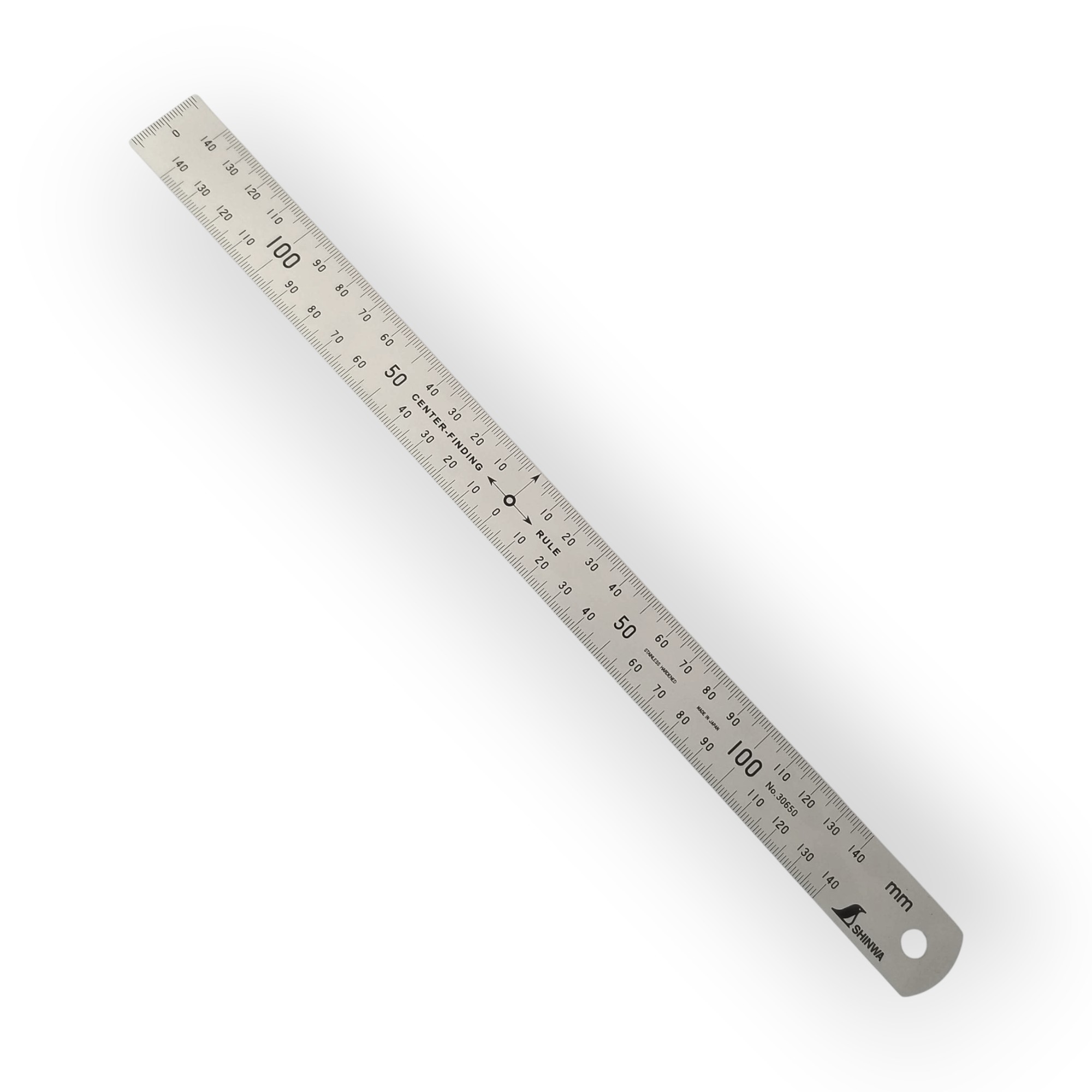

Japanese stainless steel center-finding ruler 300 mm (metric) Shinwa - 4 scales

The Japanese center-finding ruler by Shinwa is a precision measuring tool that makes it easy to quickly determine the center of a workpiece. The zero point is located in the middle of the scale, allowing for instant and error-free measuring of equal distances in both directions. Made of hardened stainless steel, it is wear-resistant and perfect for everyday workshop use.

Application:

The ruler is perfectly suited for woodworking, model making, and metalworking. It is indispensable for scribing, marking the symmetry axis of details, installing furniture hardware, drilling through-holes, and any other task requiring precise positioning relative to the center of an element.

List of advantages:

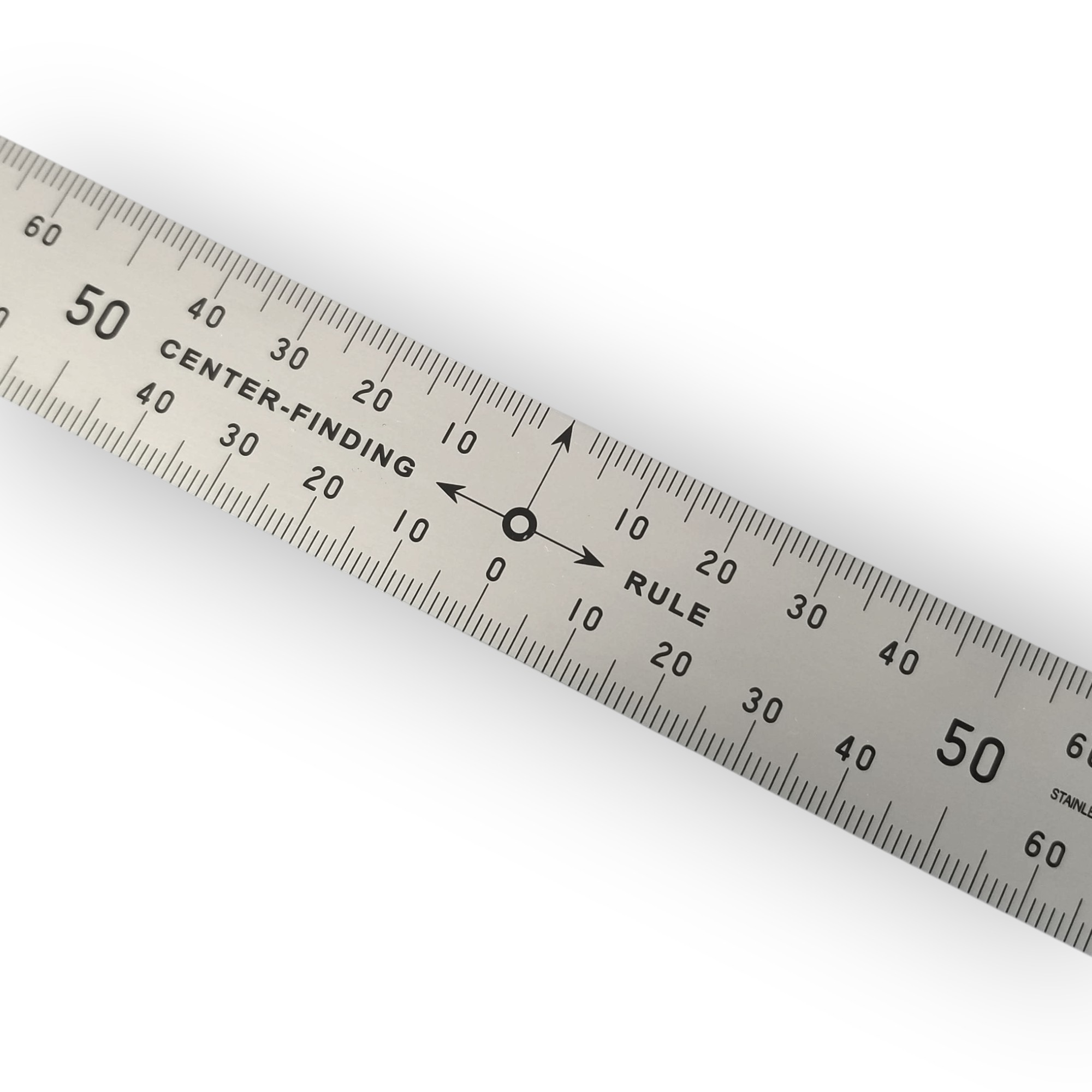

• Instant centering: The scale with a zero point in the middle (140 mm to the left and 140 mm to the right) eliminates the need for calculations when determining the axis of symmetry.

• High build quality: The ruler is manufactured in Japan by the renowned Shinwa Measuring Tools Corporation from the highest quality hardened stainless steel, ensuring a long lifespan.

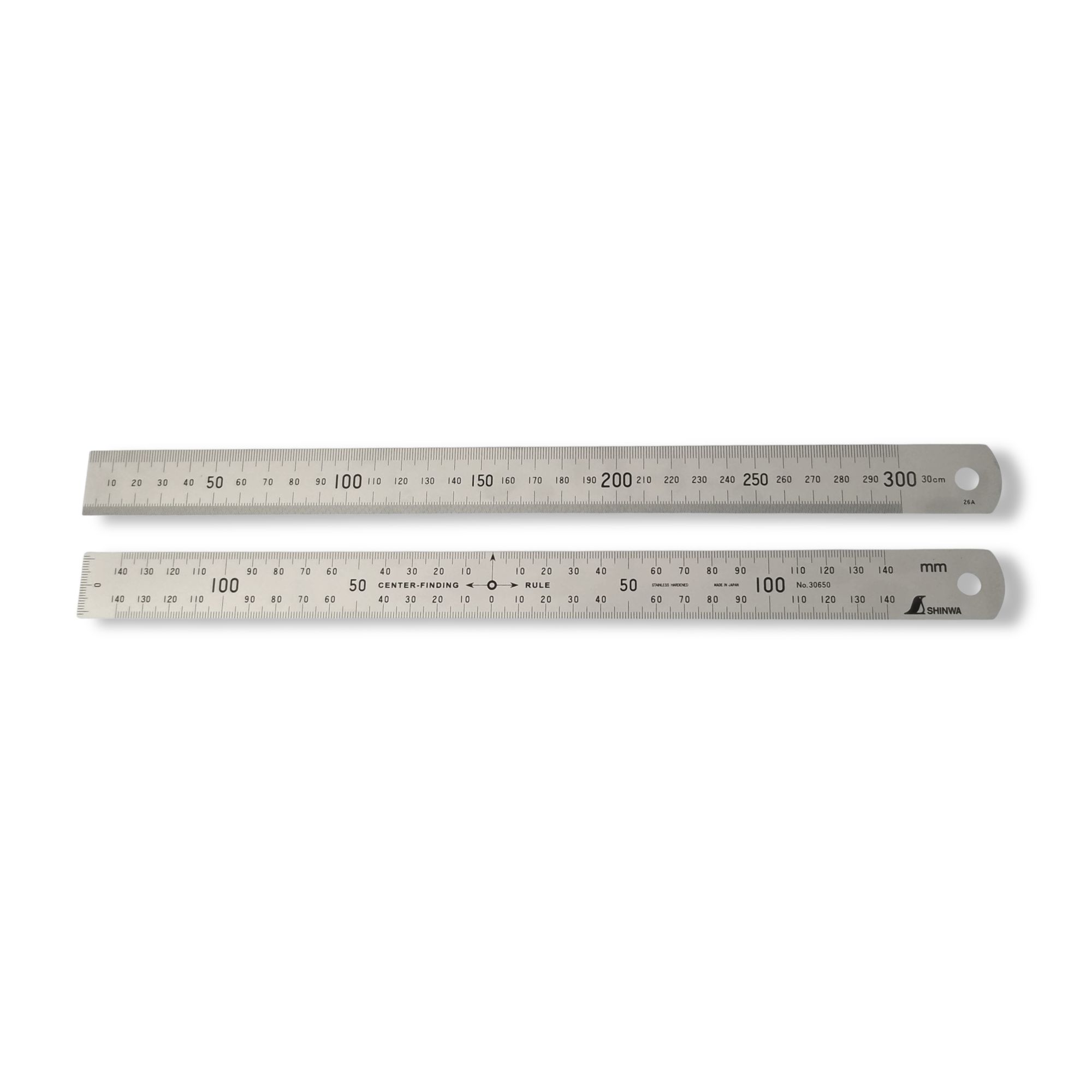

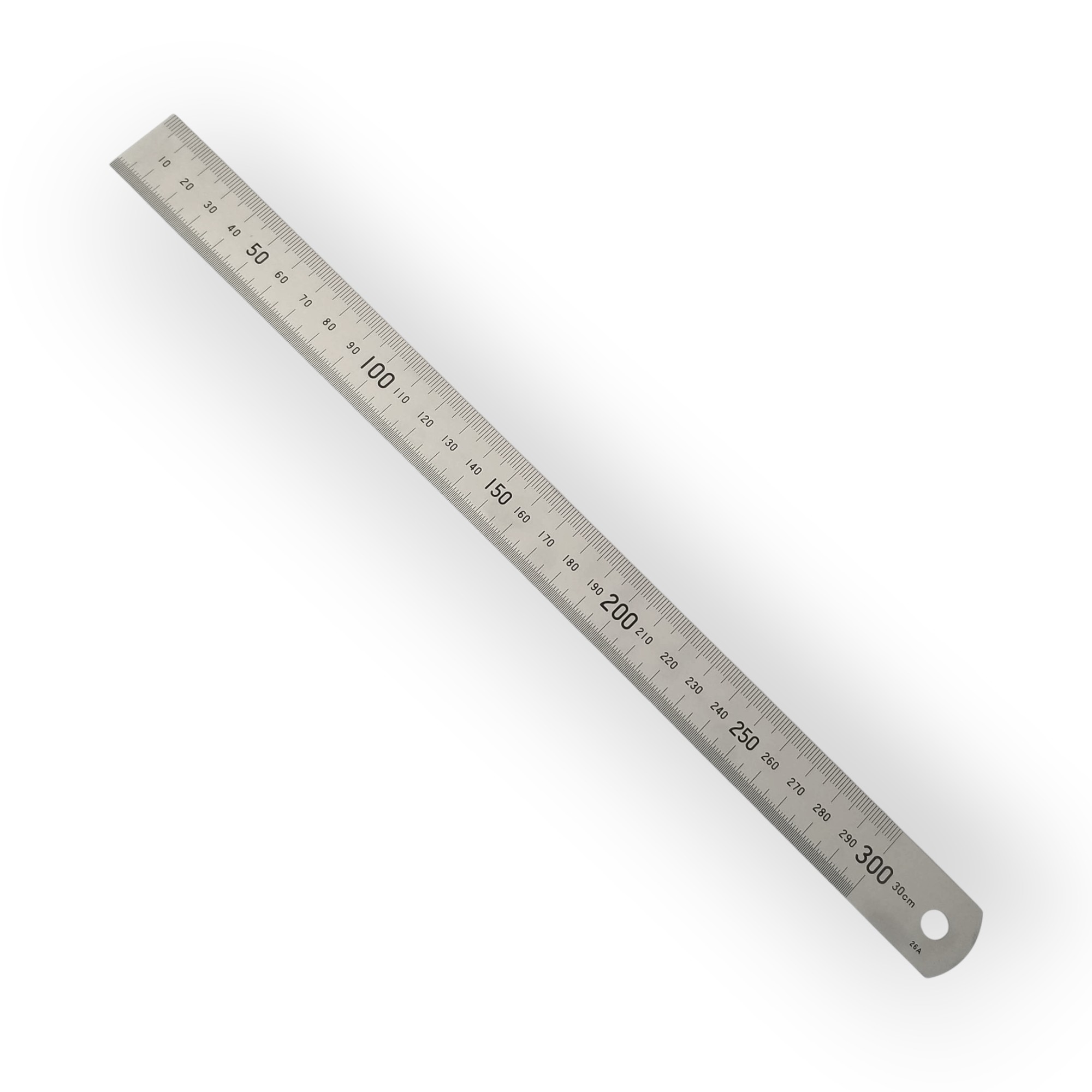

• Two scales in one: The tool features a standard metric scale (300 mm) on one side and a centering scale on the other, making it a versatile workshop instrument.

• Precise and clear reading: The matte, satin finish (zero-glare) prevents light reflections. The scale is etched and blackened for maximum contrast and easy reading.

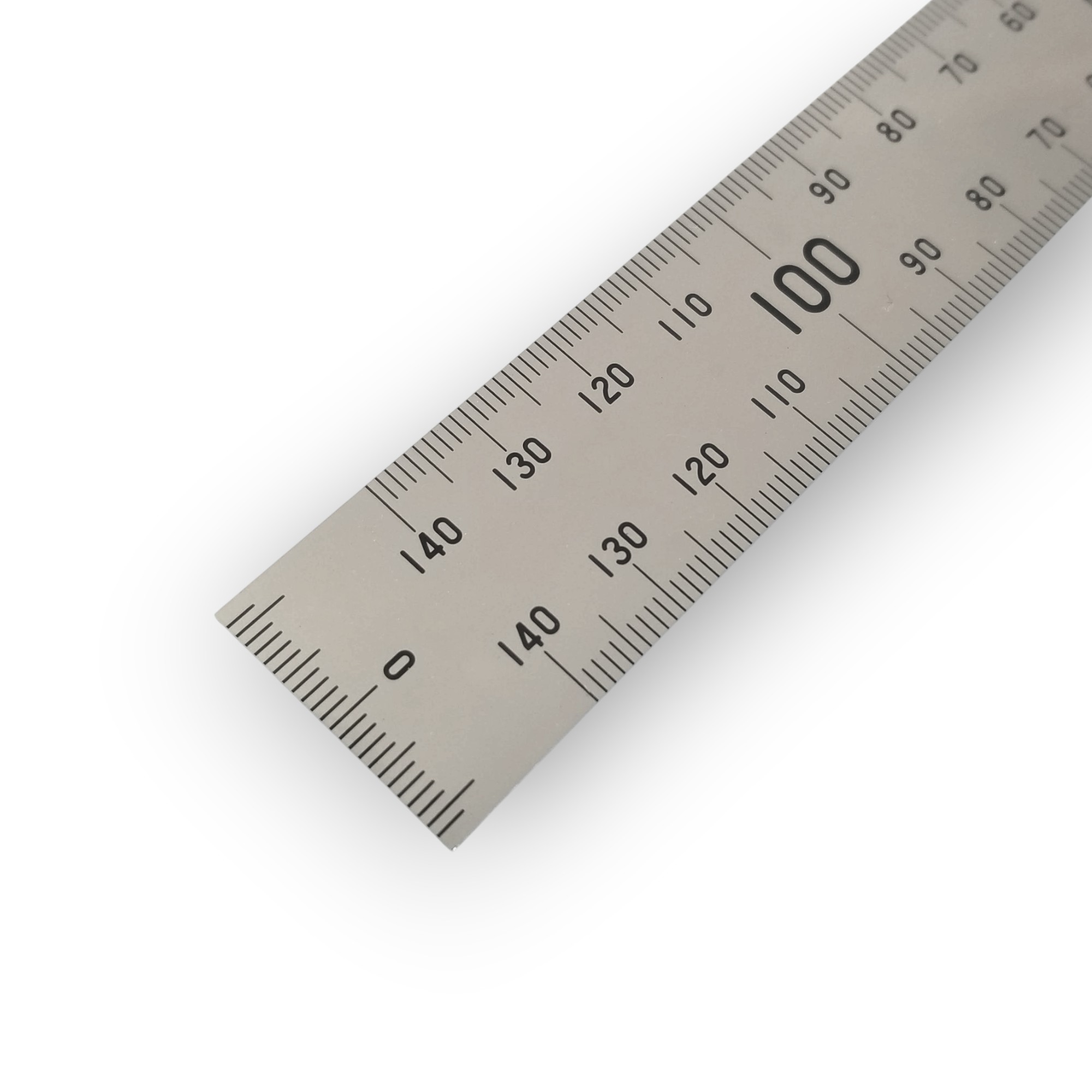

• Edge scale: The centering scale is designed with graduations right on the edges of the ruler (End Graduation Scale), which further increases scribing precision.

Parameters:

• Total length: 333 mm

• Centering scale length: 140 mm each from the center point

• Standard scale length: 300 mm

• Edge scale length: 22 mm (0 in the middle)

• Width: 25.4 mm

• Thickness: 1 mm

• Centering scale graduation: every 1 mm

• Standard scale graduation: every 0.5 mm (bottom edge)

• Material: Hardened stainless steel

• Finish: Satin chrome (anti-glare)

• Tolerance: (+/-)0.15 mm per 300 mm.

Made in Japan
