Metal Japanese Drill Stand 1.5-13mm Rulo Star-M

Manufacturer:Star-M
Availability:in stock 13 item(s)
Product Code:50R

Product Dimensions and Weight

Product Weight: 0.8000KG
799,00 zł
gross

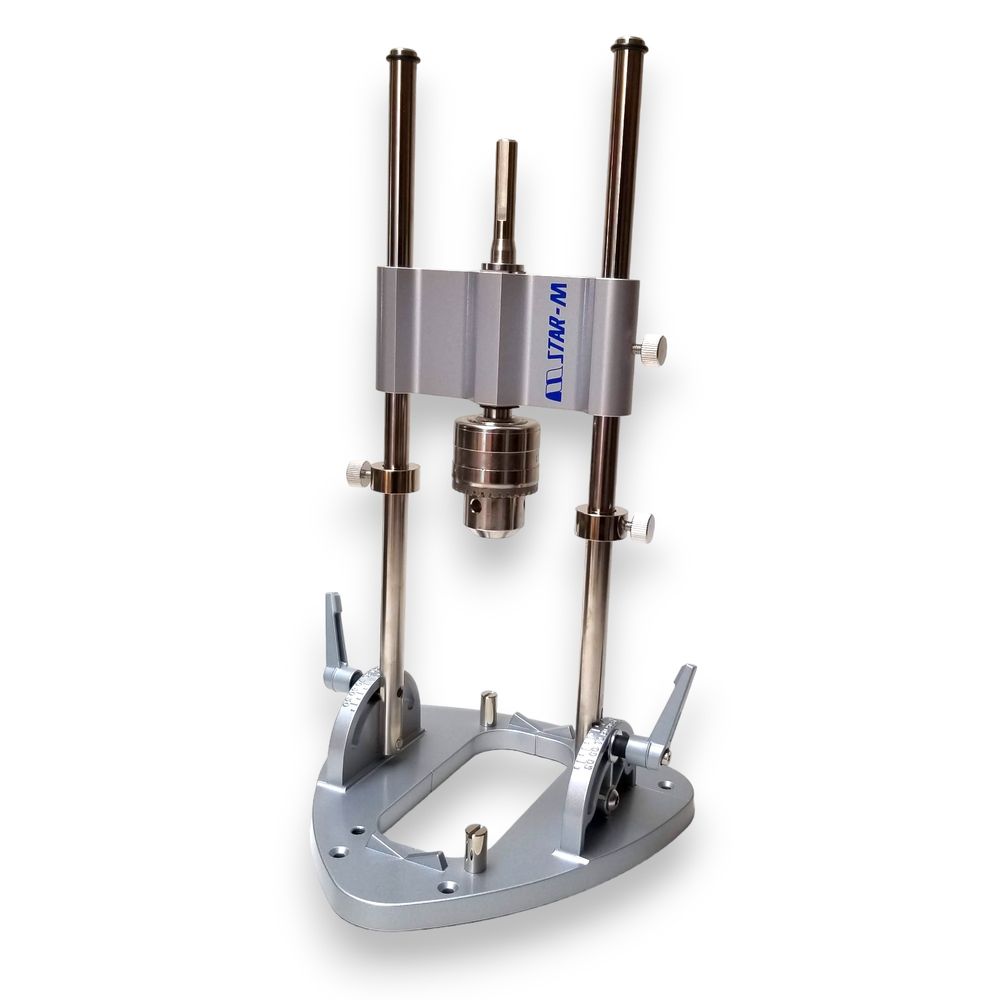

Metal Japanese Drill Stand for Drills 1.5-13mm with Adjustable Angle Star-M

The mobile and convenient Japanese drill stand allows for drilling at a selected angle. This exceptionally practical accessory is perfect for fieldwork and in hard-to-reach places.

Features:

  • Compatible with available market electric drills and screwdrivers - it has a mounting shaft with a diameter of 10mm.
  • Allows for the installation of all drills with a maximum shaft diameter of 13mm and a working diameter of 57mm.
  • Features smooth angle adjustment relative to the drilled surface - up to 45 degrees.
  • The construction includes two depth limiters.
  • The set includes two centering pins - making it easier to center and drill narrow elements.
  • The stand allows for drilling in elongated, round objects - thanks to special guides in the base.
  • The base is equipped with non-slip rubber.

Parameters:

  • For use with: electric drill and screwdriver with speeds up to 2500rpm.
  • Mounting shaft diameter for the screwdriver: 10mm.
  • Accepts drills with a shaft diameter of: 1.5-13mm.
  • Maximum drill length: 230mm.
  • Maximum working diameter of the drill: 57mm (maximum thickness of the drill at a 45-degree tilt - max 22mm).
  • Height range (drilling depth): 220mm.
  • Material: steel (head, guides), aluminum (bridge, base, knobs), non-slip rubber under the base.
  • Base dimensions: 195x195mm (triangular shape).
  • Dimensions of the working hole in the base: 130x60mm.
  • Total height of the stand: 370mm.

Product Video:https://youtu.be/7TGCPr22_BE



Produced in Japan.
