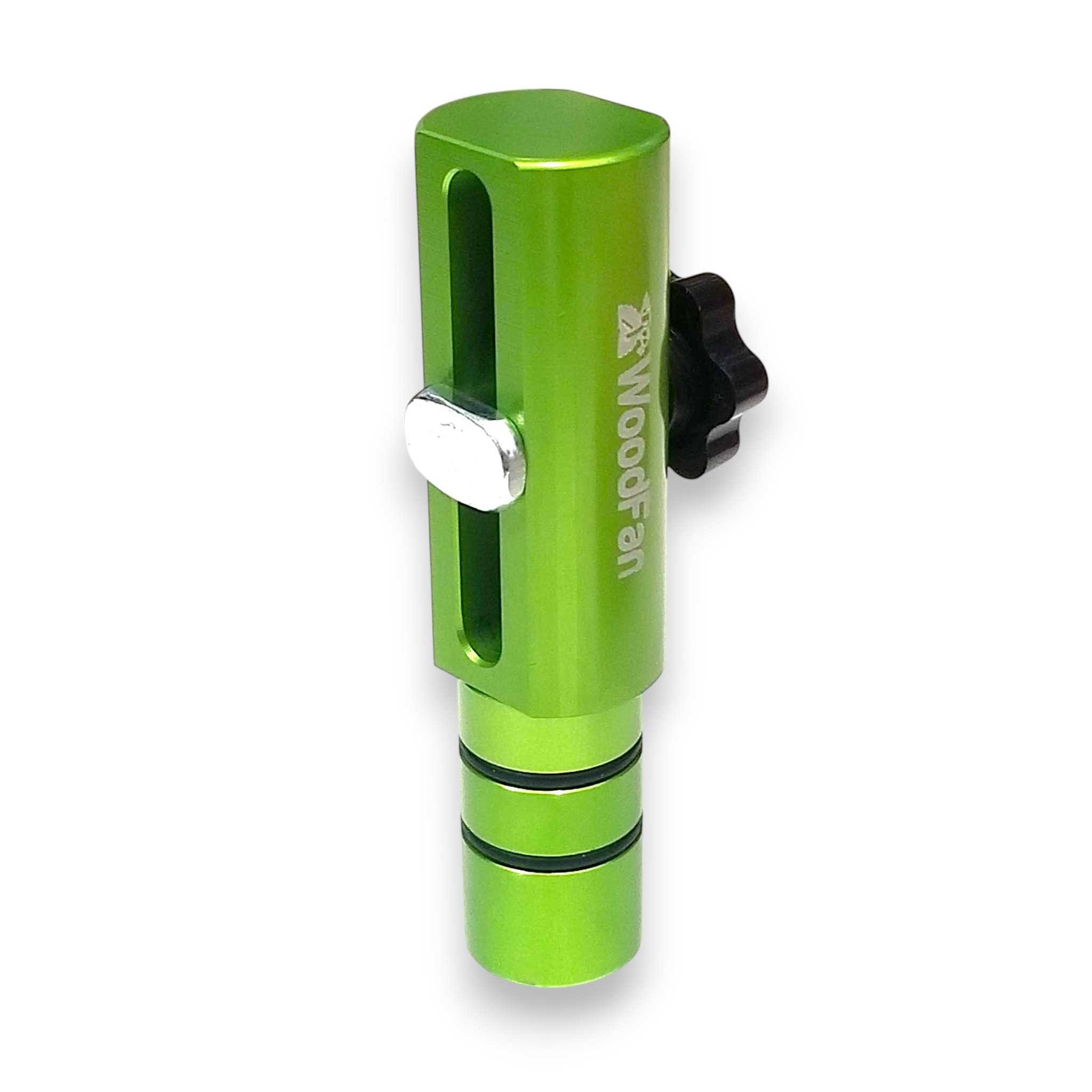

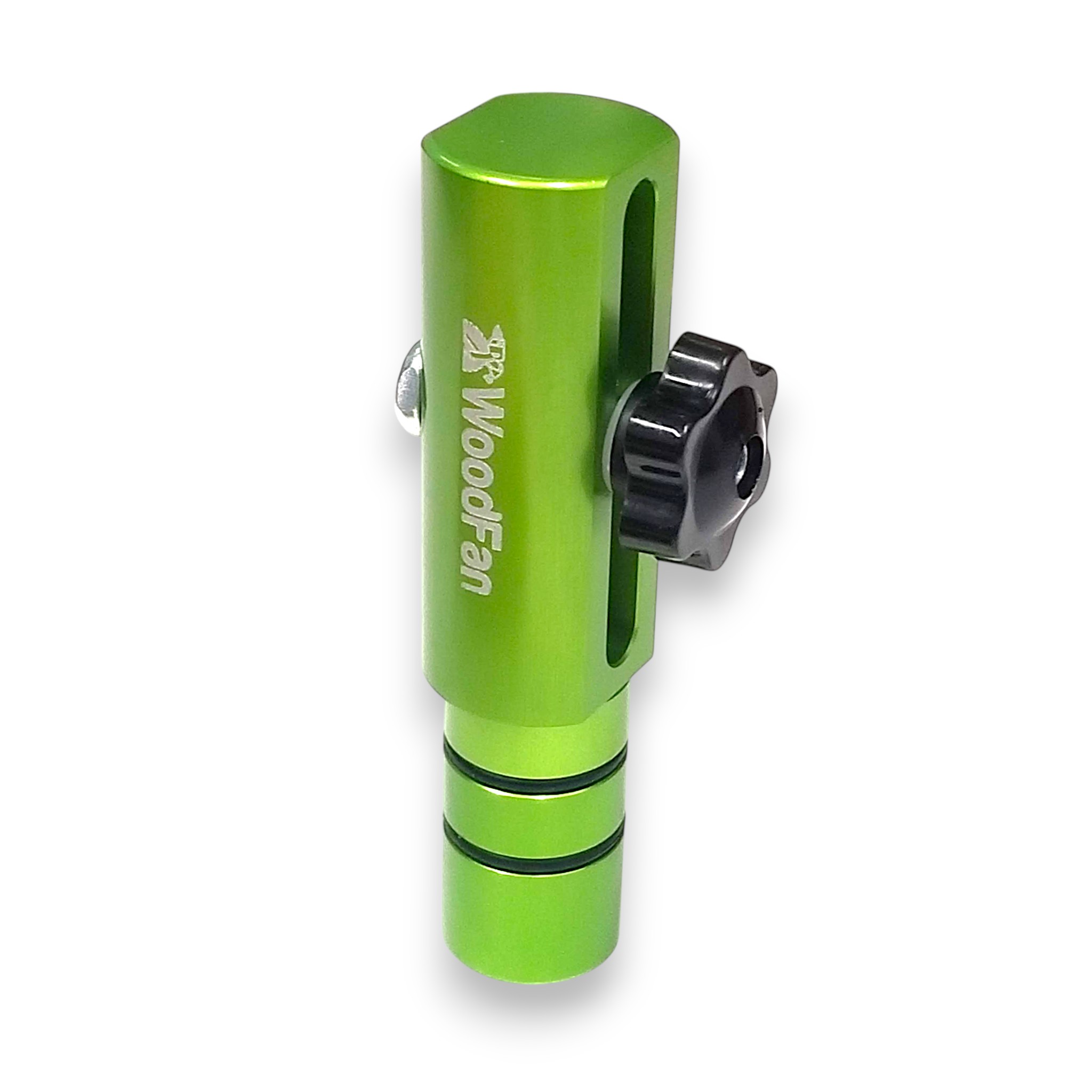

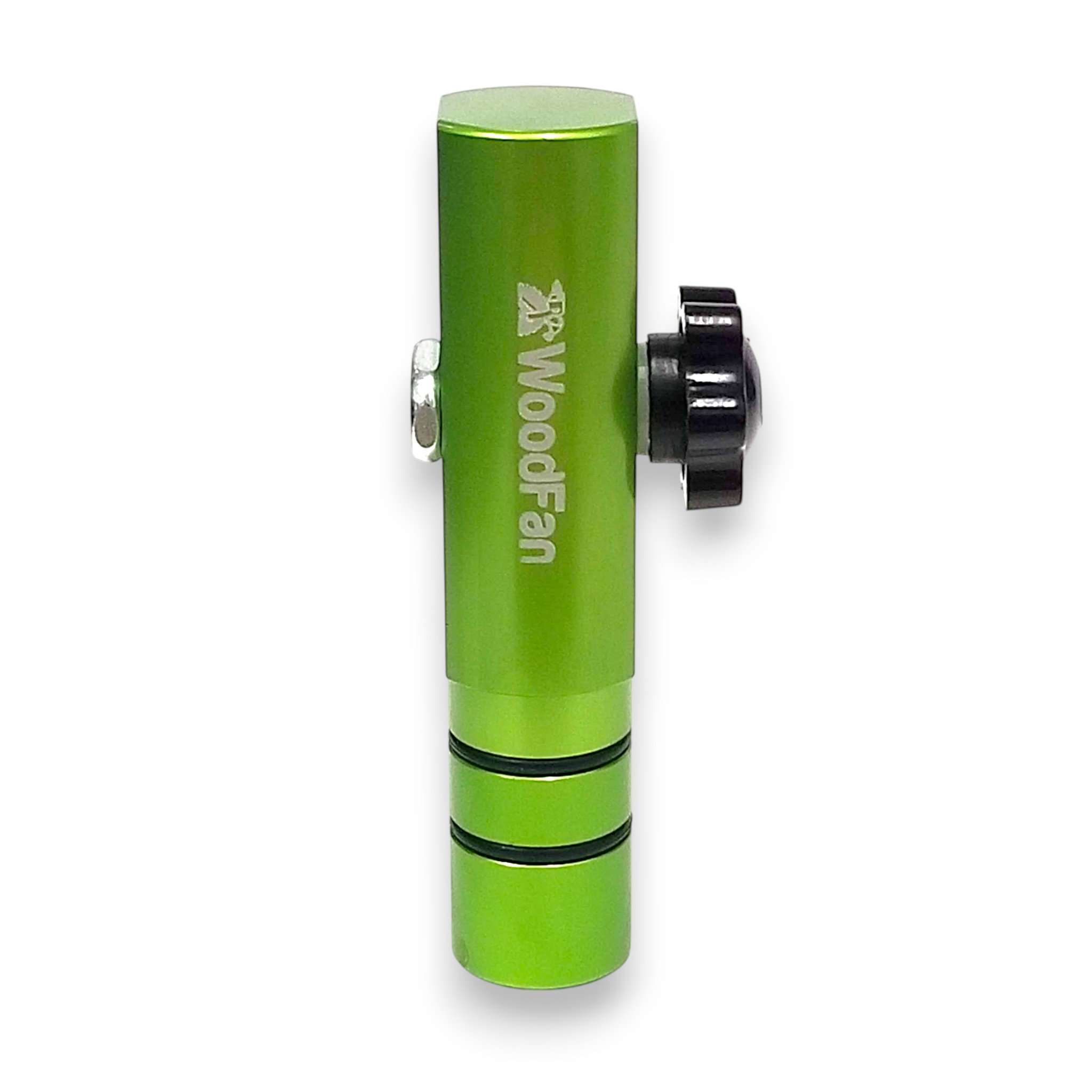

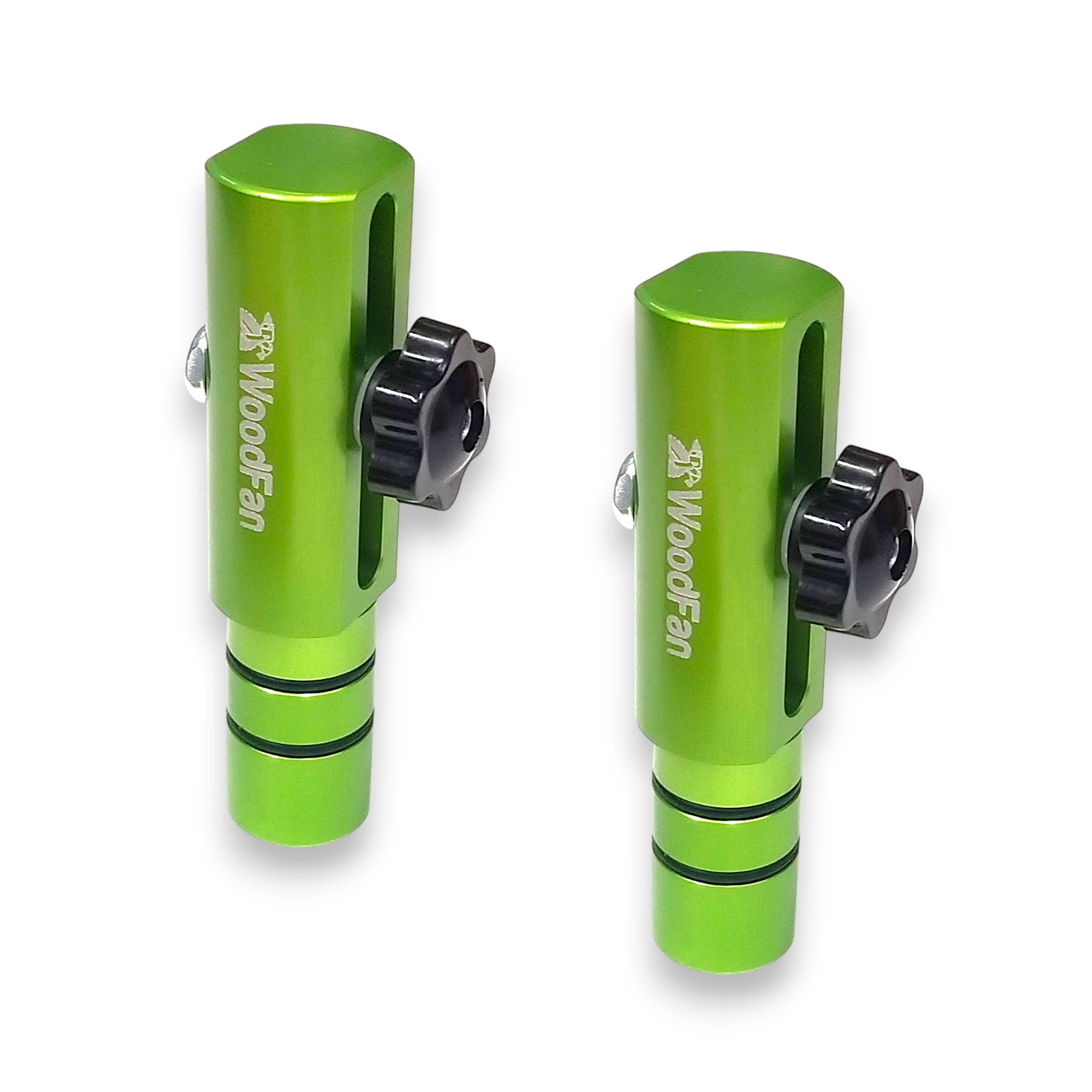

Bench Dogs for mounting rails and guides on MFT tables with 20mm holes - 2pcs.

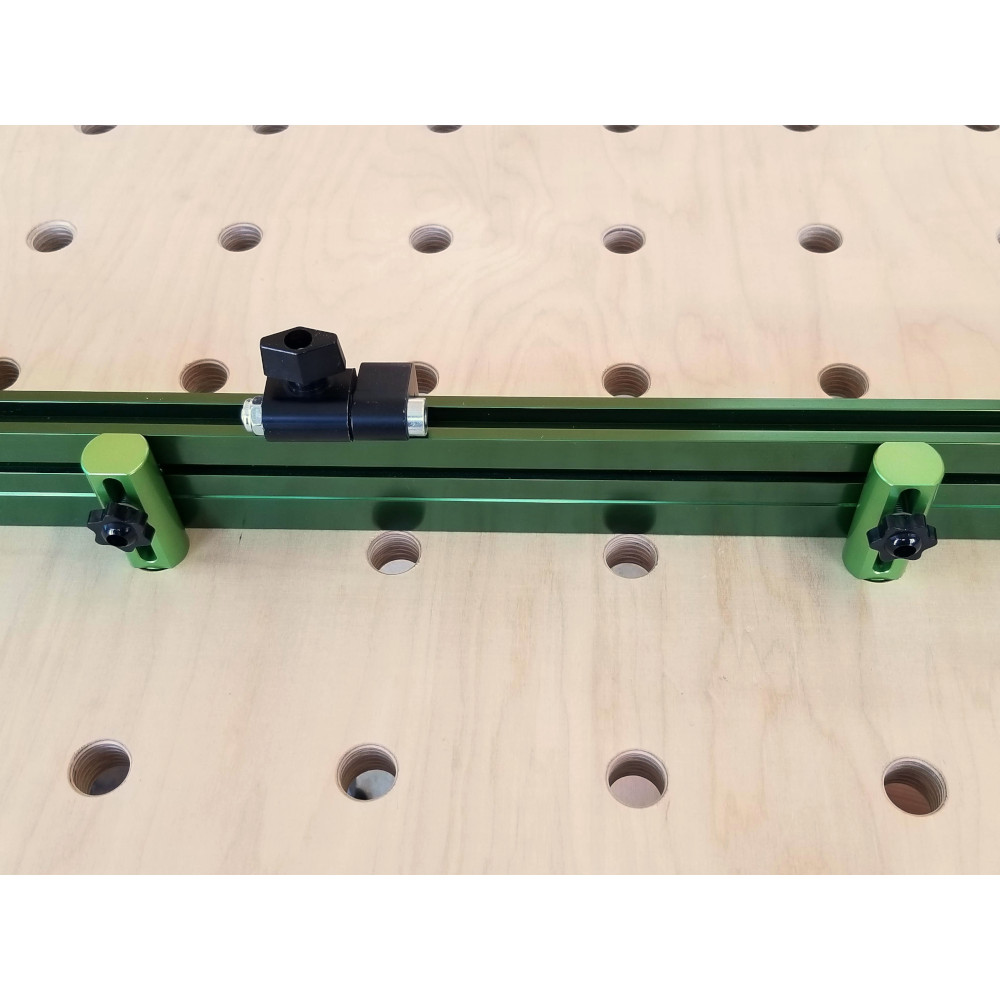

A set of 2 bench dogs designed for mounting and securing guides and rails (e.g., Muro rails) on MFT table tops equipped with 20mm holes.

The bench dogs feature an expansion mechanism to fit the hole, which eliminates the problem of wobbling and deviation from the vertical during work. The expandable 20mm pin has special rubber o-rings that facilitate stabilization and prevent the bench dog from slipping out, so as not to damage the hole. A slight tightening of the bench dog (from the bottom or top) locks it in the hole and eliminates any play.

Features:

• Bench dogs designed for 20mm diameter holes;

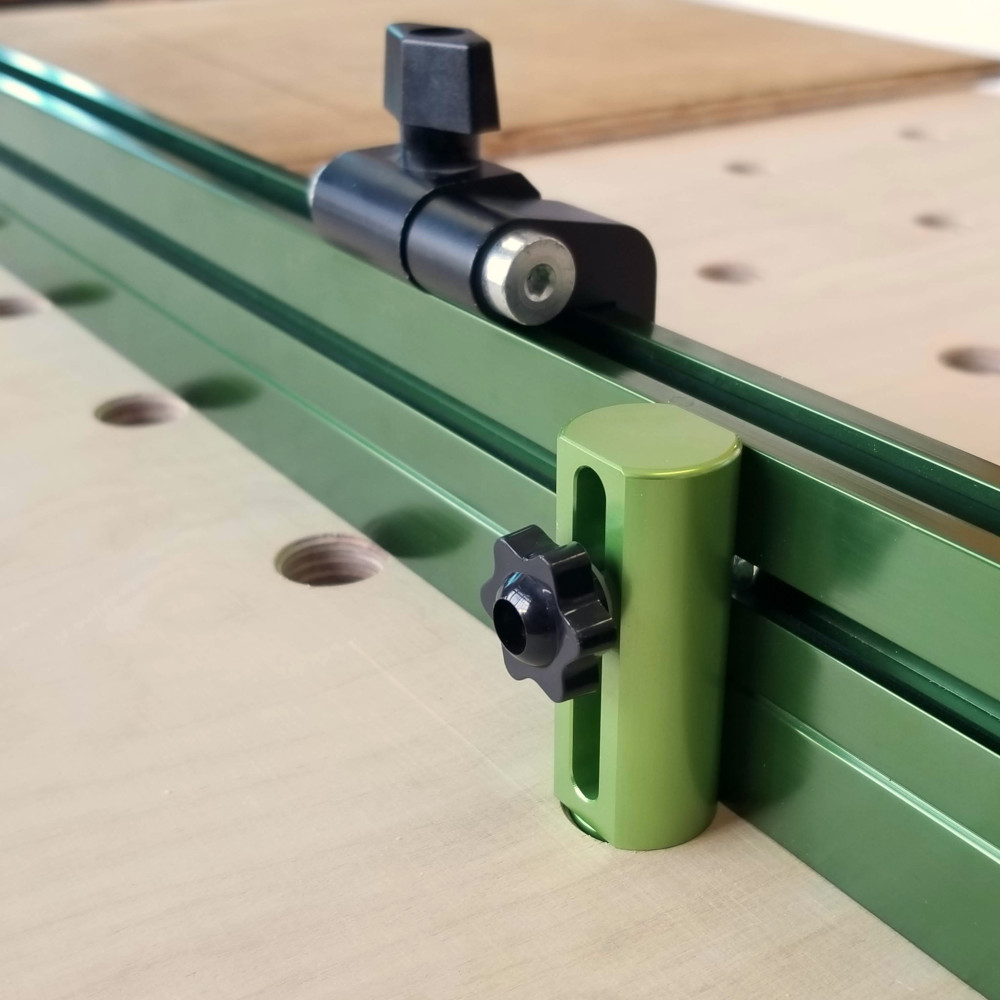

• Universal rail mounting using a T-bolt tightened with a knob;
• Adjustable mounting height ensures compatibility with many different profiles;

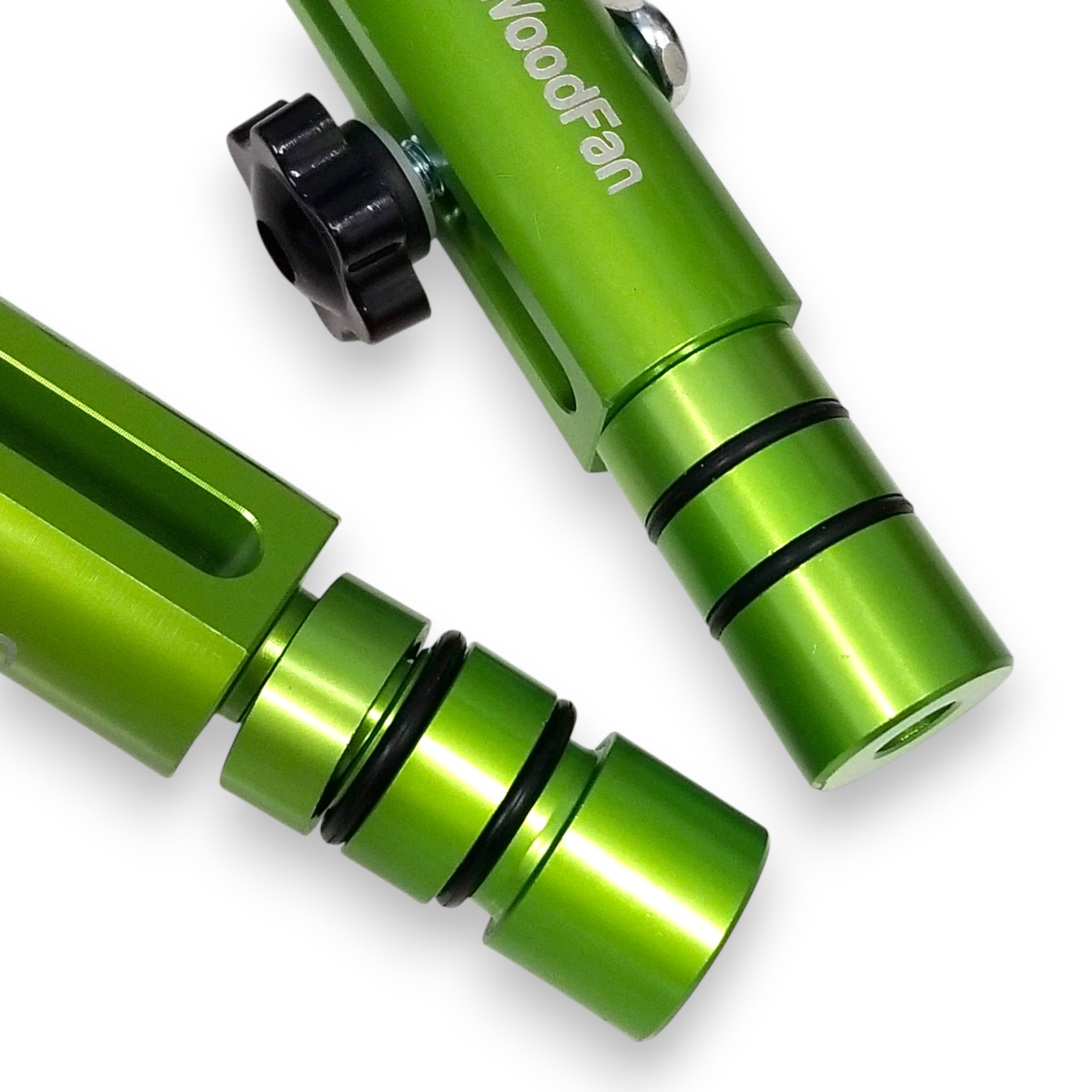

• The pin is equipped with rubber o-rings - slightly tightening the bench dog in the hole completely eliminates play;

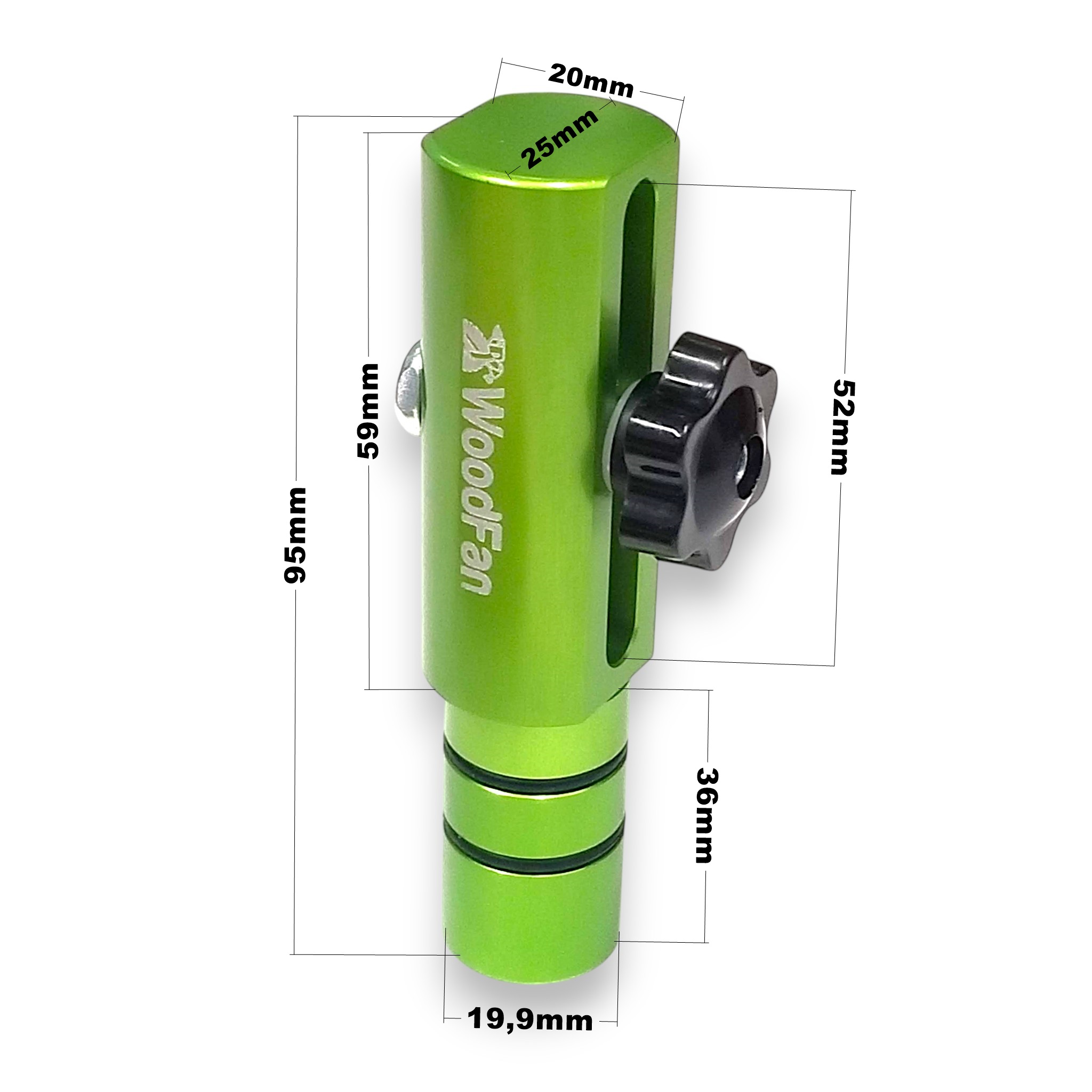

Parameters:

• Pin diameter: 19.9mm (compatible with 20mm holes)
• Pin height: 36mm
• Working part height: 59mm
• Total height: 95mm
• Mounting height adjustment range: 52mm (min. 4mm, max. 56mm above the table level)
• Cross-section of the bench dog's working part: 20x25mm
• Mounting screw head dimensions: 15.3x10.1x3mm
